Non-Intrusive Pig Signalers

$1

In the oil, gas, and water pipeline industry, ensuring the smooth flow of fluids and maintaining pipeline integrity are paramount.

Description

Introduction:

In the oil, gas, and water pipeline industry, ensuring the smooth flow of fluids and maintaining pipeline integrity are paramount. Monitoring the passage of cleaning pigs is essential for effective maintenance and inspection. Traditional pig signalers, which require intrusive methods of installation, often pose challenges such as mechanical failures, non-explosion-proof designs, and limitations in accuracy. However, a groundbreaking solution has emerged: non-intrusive pig signalers. In this article, we will delve into the features, advantages, and functionality of non-intrusive pig signalers, revolutionizing pipeline monitoring.

Non-intrusive pig signalers represent a revolutionary advancement in pipeline monitoring technology. With their unmatched flexibility, effortless installation, and advanced sensing mechanisms, these signalers provide accurate and reliable data on the passage of cleaning pigs. By streamlining maintenance activities, reducing downtime, and improving operational efficiency, non-intrusive pig signalers contribute to enhanced pipeline performance and cost savings. Embracing this innovative solution demonstrates a commitment to excellence, safety, and optimization in the oil, gas, and water pipeline industry.

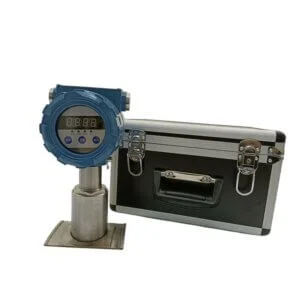

non-intrusive pig signaler

Unparalleled Flexibility and Easy Installation:

Unlike their intrusive counterparts, non-intrusive pig signalers offer unmatched flexibility in installation. These signalers can be set anywhere on the pipeline, eliminating the need for connecting flanges or specific material requirements. This ease of installation translates to reduced downtime, increased operational efficiency, and significant cost savings. Whether dealing with challenging pipeline configurations or inaccessible areas, non-intrusive pig signalers provide a convenient and adaptable solution.

Maintenance Made Effortless:

When maintenance or inspection is required, non-intrusive pig signalers can be effortlessly removed without suspending production. This advantage eliminates the need for time-consuming and costly procedures associated with intrusive signalers. By minimizing downtime and streamlining maintenance activities, non-intrusive pig signalers contribute to improved operational efficiency and reduced operational costs.

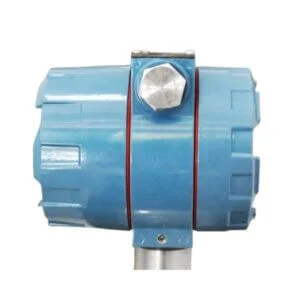

non-intrusive pig signaller

Advanced Sensing Mechanism for Accurate Detection:

Non-intrusive pig signalers incorporate a sophisticated sensing mechanism consisting of a reverse reluctance circuit, balance amplifier circuit, low-pass filter circuit, trigger circuit, CPU, a remote switching circuit, display circuit, and reset circuit. This comprehensive system ensures precise detection of the passage of cleaning pigs. With a sensor type based on magnetic induction, non-intrusive pig signalers provide reliable and accurate data on pig passage, enabling effective maintenance planning and improved pipeline performance.

Versatile Functionality and User-Friendly Interface:

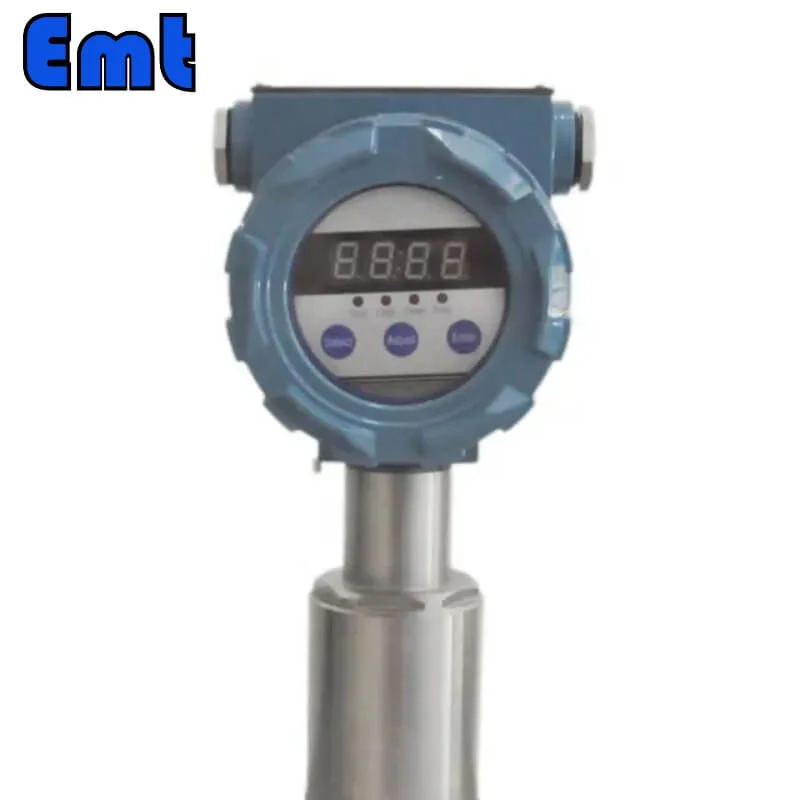

Non-intrusive pig signalers feature an intuitive interface and user-friendly controls. Equipped with three buttons – Select, Adjust, and Confirm – these signalers offer four primary functions: detection, query, zero clearing, and time setting. The detection function ensures proper battery power supply and threshold consistency, allowing for customized monitoring based on specific local conditions. The query function provides easy access to stored passing times, enabling efficient data retrieval. The zero clearing function ensures reliable records by manually resetting the passing time counter. Lastly, the timing function allows users to accurately set and adjust the instrument’s internal clock, ensuring precise time synchronization.

Enhanced Safety and Reliability:

Non-intrusive pig signalers prioritize safety and reliability. With an explosion-proof design marked as Exd IICT6 Gb and an IP65 protection grade, these signalers can withstand harsh environments and prevent hazardous incidents. The robust construction and high-quality materials guarantee longevity, enabling continuous and uninterrupted monitoring. By eliminating mechanical failures and addressing electronic interference issues, non-intrusive pig signalers offer superior performance, minimizing false alarms and ensuring the timely detection of pig passage.

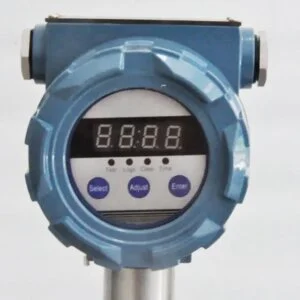

non-intrusive pig signaller

Conclusion:

Choose non-intrusive pig signalers for your pipeline monitoring needs and experience the advantages of flexibility, accuracy, and reliability. With their user-friendly interface and versatile functionality, non-intrusive pig signalers empower operators to efficiently monitor and manage pipeline operations.

By adopting non-intrusive pig signalers, you can overcome the limitations of traditional pig signalers connected with flanges or welds. The non-invasive nature of these signalers allows for easy installation and maintenance, saving time and resources. Their adaptability to various pipeline configurations eliminates the need for extensive modifications or specialized equipment.

The core sensing mechanism of non-intrusive pig signalers, comprising a reverse reluctance circuit, balance amplifier circuit, low-pass filter circuit, trigger circuit, CPU, a remote switching circuit, display circuit, and reset circuit, ensures accurate and reliable detection of pig passage. This advanced technology enhances the efficiency of maintenance activities by providing precise information on cleaning pig movement within the pipeline.

The functionality of non-intrusive pig signalers is easily accessible through the intuitive interface. The three buttons – Select, Adjust, and Confirm – enable users to navigate through the detection, query, zero clearing, and time-setting functions. Whether you need to verify the instrument’s battery power supply, retrieve passing time records, reset the counter, or adjust the internal clock, the user-friendly interface simplifies the process.

In conclusion, non-intrusive pig signalers revolutionize pipeline monitoring by offering unmatched flexibility, accurate detection, and ease of installation and maintenance. Their advanced sensing mechanism, user-friendly interface, and robust design ensure reliable and efficient monitoring of cleaning pig passage. By embracing this cutting-edge technology, you can optimize pipeline maintenance, reduce downtime, and enhance overall operational performance.

Choose non-intrusive pig signalers for your pipeline monitoring needs and unlock the benefits of seamless, reliable, and cost-effective monitoring. Experience the future of pipeline maintenance with non-intrusive pig signalers and ensure the integrity and efficiency of your pipeline operations.
