In pipeline cleaning operations, pigging accessories play a crucial role in optimizing flow, preventing corrosion, and clearing blockages. These versatile devices, used in conjunction with pipeline-cleaning pigs, are equipped with various components that enhance their cleaning capabilities and enable efficient inspection and maintenance.

Description

In pipeline cleaning operations, pigging accessories play a crucial role in optimizing flow, preventing corrosion, and clearing blockages. These versatile devices, used in conjunction with pipeline-cleaning pigs, are equipped with various components that enhance their cleaning capabilities and enable efficient inspection and maintenance. In this article, we will explore the key pigging accessories, their functions, and the materials from which they are made.

Types of Pigging Accessories

gauging disc 3

Gauging Disc: Accurate Detection and Enhanced Cleaning Efficiency

One essential component of pigging accessories is the gauging disc, which is located in the middle of the pig. It serves multiple purposes, including detecting pipeline deformations and improving cleaning efficiency. Typically made of aluminum, the gauging disc is designed to have a diameter ranging from 80% to 95% of the inner diameter of the pipe. This sizing ensures effective impurity removal and enhances the overall transmission efficiency of the pipeline. Additionally, the gauging disc aids in isolating different media, conducting pressure tests, and identifying pipeline corrosion.

pig's magnetic steel

Magnetic Steel: Rust Absorption and Maintenance

Another critical accessory is magnetic steel, often crafted from NdFeB material, which possesses the unique ability to absorb rust within the pipeline. Rust accumulation is a common problem in metal pipelines, leading to reduced efficiency and potential damage. By incorporating magnetic steel into pigging accessories, it becomes possible to mitigate these issues and maintain a clean pipeline interior.

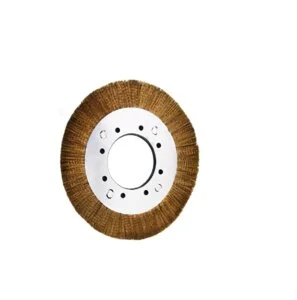

pig's steel brush

Steel Brush: Thorough Cleaning of Residual Medium

Steel brushes, usually made of carbon steel or nylon, are employed as pigging accessories to tackle stubborn deposits and residual media within pipelines. These brushes are placed at the front end of the pig, offering excellent cleaning efficacy. The robustness of the steel brush ensures the thorough removal of debris and contaminants, contributing to improved pipeline performance.

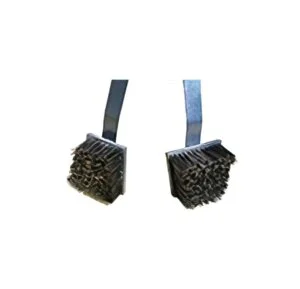

Pig's Spring Steel Brush

Spring Steel Brush: Enhanced Cleaning Efficiency and Flexibility

The spring steel brush serves a similar purpose to the standard steel brush but with added flexibility. Constructed using carbon steel and nylon materials, the spring steel brush is strategically positioned within pigging accessories. This configuration enhances cleaning effectiveness by accommodating bends and curves within the pipeline, ensuring optimal removal of residues and deposits.

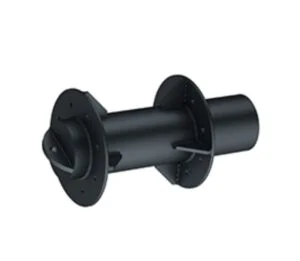

Carbon Steel Body

Carbon Steel Body: Structural Integrity and Connectivity

The carbon steel body forms the main structure of pigging accessories, ensuring the overall durability and connectivity of the components. By utilizing carbon steel, which offers excellent strength and resistance to corrosion, the pigging accessories can withstand the demanding conditions encountered during cleaning operations. The carbon steel body is connected to the cup, creating a sturdy and reliable assembly.

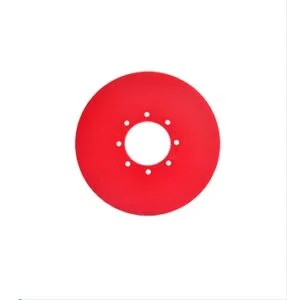

Guide Disc

Guide Disc: Smooth Entry and Extended Durability

Made from polyurethane, the guide disc assists pigging accessories during pipeline entry, providing support and extending the running distance. This accessory plays a critical role in ensuring the smooth insertion of the pig into the pipeline. Additionally, the guide disc increases the durability of both the front disc and the cup, enhancing the overall longevity of the pig.

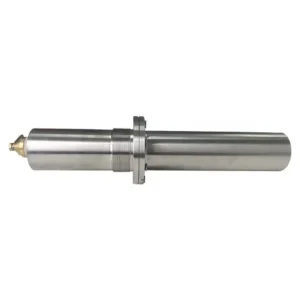

PIG transmitter4

Transmitter: Accurate Pig Location and Tracking

The transmitter serves as an essential accessory for pigging operations. Its primary function is to transmit signals, enabling accurate tracking and locating of the pig within the pipeline. By incorporating a transmitter into pigging accessories, operators can precisely monitor the pig’s progress, ensuring comprehensive coverage and efficient cleaning.

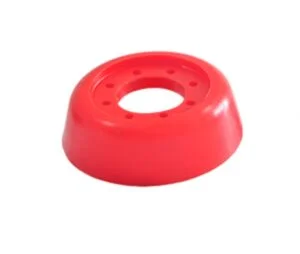

cup

Cups: Versatile Polyurethane Components

Cups, composed of polyurethane, constitute the primary components of pigging accessories. These integral elements provide the necessary sealing and traction to propel the pig through the pipeline. Polyurethane offers excellent wear resistance and durability, enabling the pig to traverse the pipeline smoothly and efficiently.

Advantages

  1. Accurate Detection and Enhanced Cleaning Efficiency: The gauging disc in pigging accessories detects pipeline deformations and improves cleaning efficiency, contributing to the overall transmission efficiency of the pipeline.
  2. Rust Absorption and Maintenance: Magnetic steel in pigging accessories absorbs rust within pipelines, mitigating efficiency reduction and potential damage caused by rust accumulation.
  3. Thorough Cleaning of Residual Medium: Steel brushes effectively tackle stubborn deposits and residual media within pipelines, contributing to improved pipeline performance.
  4. Enhanced Cleaning Efficiency and Flexibility: The spring steel brush provides added flexibility, accommodating bends and curves within pipelines, ensuring optimal removal of residues and deposits.
  5. Structural Integrity and Connectivity: The carbon steel body ensures the overall durability and connectivity of the pigging accessories, withstanding the demanding conditions encountered during cleaning operations.
  6. Smooth Entry and Extended Durability: The guide disc provides support during pipeline entry, extending the running distance and increasing the durability of both the front disc and the cup.
  7. Accurate Pig Location and Tracking: The transmitter enables accurate tracking and locating of the pig within the pipeline, ensuring comprehensive coverage and efficient cleaning.
  8. Versatility and Durability: Cups, composed of polyurethane, provide the necessary sealing and traction to propel the pig through the pipeline while exhibiting excellent wear resistance and durability.

pigging accessories

Conclusion

In the realm of pipeline maintenance, the use of pigging accessories is vital for effective cleaning, inspection, and maintenance. Gauging discs, magnetic steel, steel brushes, spring steel brushes, carbon steel bodies, guide discs, transmitters, and cups all contribute to the overall efficiency and success of pigging operations.

By incorporating a gauging disc into the design of pigging accessories, operators can detect deformations within the pipeline while simultaneously improving the cleaning process. The magnetic steel accessory plays a crucial role in rust absorption, preventing corrosion and maintaining the integrity of the pipeline. Steel brushes and spring steel brushes effectively remove residual medium and deposits, ensuring a clean and unobstructed pipeline interior.

The carbon steel body provides the structural integrity and connectivity necessary for the components of pigging accessories, ensuring durability and longevity during demanding cleaning operations. Guide discs, made of polyurethane, facilitate smooth pig entry into the pipeline, increasing both the durability of the pig’s front disc and cup. Transmitters enable accurate pig tracking and location, enhancing operational efficiency.

Cups, the primary components of pigging accessories, are crafted from polyurethane for their versatility, wear resistance, and durability. They provide the necessary sealing and traction to propel the pig through the pipeline effectively. These accessories collectively contribute to efficient cleaning, improved transmission efficiency, reduced corrosion, and enhanced safety within pipelines.

When selecting pigging accessories, it is essential to consider factors such as pipeline size, cleaning requirements, and environmental conditions. Working with experienced professionals and reputable suppliers can provide valuable guidance and ensure the selection of accessories tailored to specific pipeline maintenance needs.

In conclusion, pigging accessories are integral to achieving efficient and thorough pipeline maintenance. The gauging disc, magnetic steel, steel brushes, spring steel brushes, carbon steel bodies, guide discs, transmitters, and cups all contribute to the overall effectiveness of pigging processes. By employing these accessories and utilizing high-quality materials, operators can ensure the cleanliness, integrity, and longevity of their pipelines, leading to improved operational efficiency and reduced maintenance costs.

Remember, regular maintenance and inspection are essential for the optimal performance and longevity of pipelines. Properly cleaned and maintained pipelines contribute to the efficient transportation of fluids, reduced downtime, and enhanced safety.
