The EMT Uni-directional Scraper Pig

$1

Description

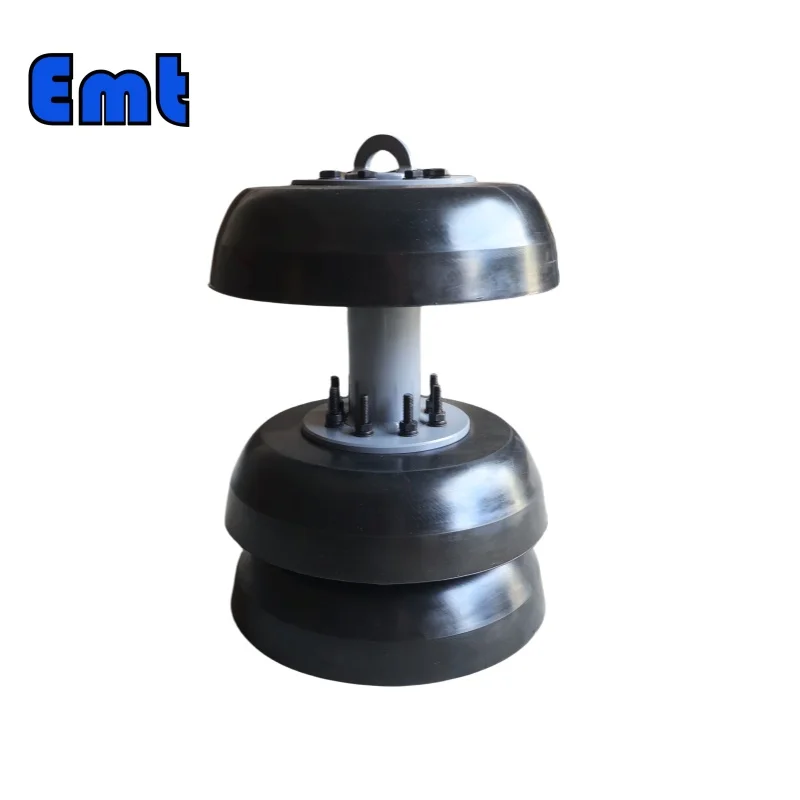

Introduction of the Uni-directional Scraper PigUni-directional Scraper Pig

The Uni-directional Scraper Pig is a highly efficient tool designed for pipeline cleaning operations. Commonly referred to as a “pig,” this device is equipped with four cups and a robust steel frame, enabling it to efficiently remove soft dirt and dust from pipelines. The pig’s scraper cup serves two key functions. Firstly, it provides excellent sealing performance, allowing for complete separation of liquid or gas at both ends of the pipeline. This separation creates a pressure difference, propelling the pig along the pipeline. Secondly, the leather cup effectively cleans the debris within the pipe and dirt on the pipeline’s inner wall. As a mechanical pig, the Uni-directional Scraper Pig stands out for its excellent performance and user-friendly design. All its components are assembled, allowing for easy replacement of the leather cup if damaged, thereby significantly reducing maintenance costs. Moreover, the pig’s high corrosion resistance ensures it can perform repeated pipeline cleanings with sustained efficiency. This product sees high demand in the industry. If you’re in need of a reliable pipeline cleaning solution, don’t hesitate to get in touch with us. We’re more than happy to provide a professional cleaning plan tailored to your specific needs.

Components of the Uni-directional Scraper Pig

The Uni-directional Scraper Pig, a vital tool for pipeline cleaning, is chiefly comprised of two main parts: the skeleton of the cleaning pig and the cups. The skeleton, functioning as the pig’s structural frame, can be constructed from various materials based on the specific demands of the application. The options include carbon steel, a common choice for its strength and durability; 304 and 316 stainless steel, known for their corrosion resistance and suitability for a wide range of conditions; and duplex steel, which includes grades F51, F53, F55, and Inconel, all of which offer excellent mechanical properties and corrosion resistance, making them ideal for harsh environments. The cups of the pig, integral components for sealing and scraping, can be crafted from polyurethane or rubber. Polyurethane cups are known for their great wear resistance and ability to handle a broad spectrum of temperatures and chemical exposures. Rubber cups, on the other hand, offer excellent flexibility and are particularly good at maintaining a seal in pipelines with irregularities. The versatility in material choices for the skeleton and cups of the Uni-directional Scraper Pig allows it to be tailored to meet the varying requirements of different pipeline systems, ensuring efficient cleaning and operational longevity.

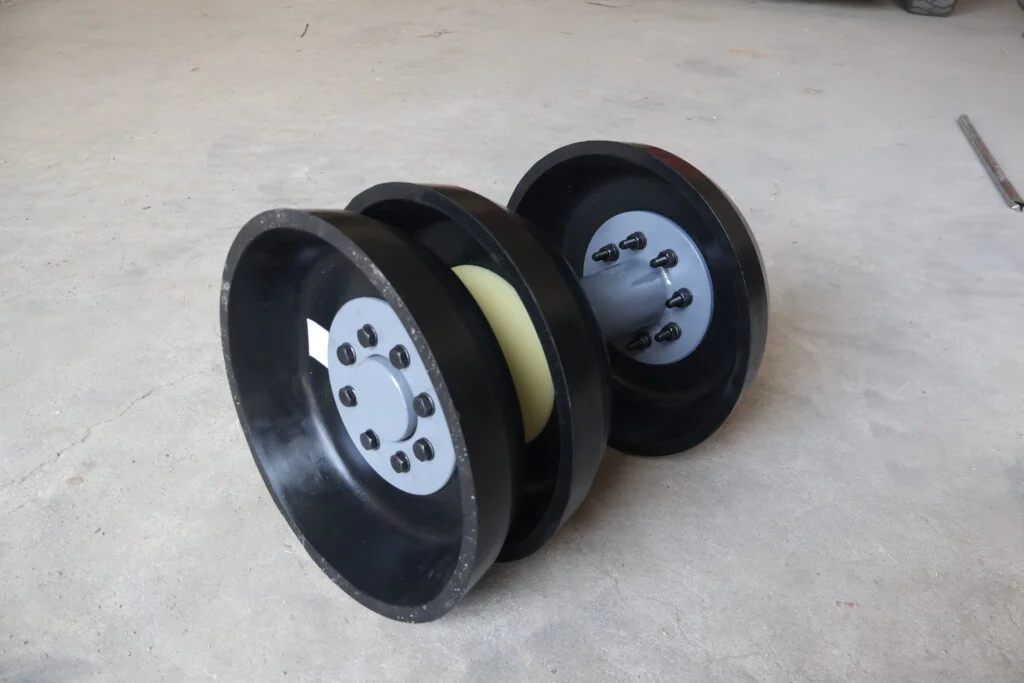

Uni-directional Scraper Pig

Matters Need Attention

The model of the product is determined based on the length and diameter of the pipeline. This ensures the product’s compatibility with the pipeline and helps determine the product’s starting pressure.

During pipeline cleaning, it’s crucial for operators to manage the pig’s running speed. If the pig runs too quickly, it may damage equipment or fail to clean thoroughly. Therefore, incorporating a pressure relief valve into the pipeline is essential to controlling the pig’s speed.

Different pipeline cleaning tasks require different operating speeds. For pigging or drainage, the operating speed should not exceed 2 m/s. For rust removal or dust cleaning, the pig’s speed should be kept at or below 1 m/s. In case the pig blocks the pipeline and loses signal, the operator needs to install a new pig equipped with a transmitter at the inlet for searching. Generally, the closer the pig gets to the blockage, the slower it will run.

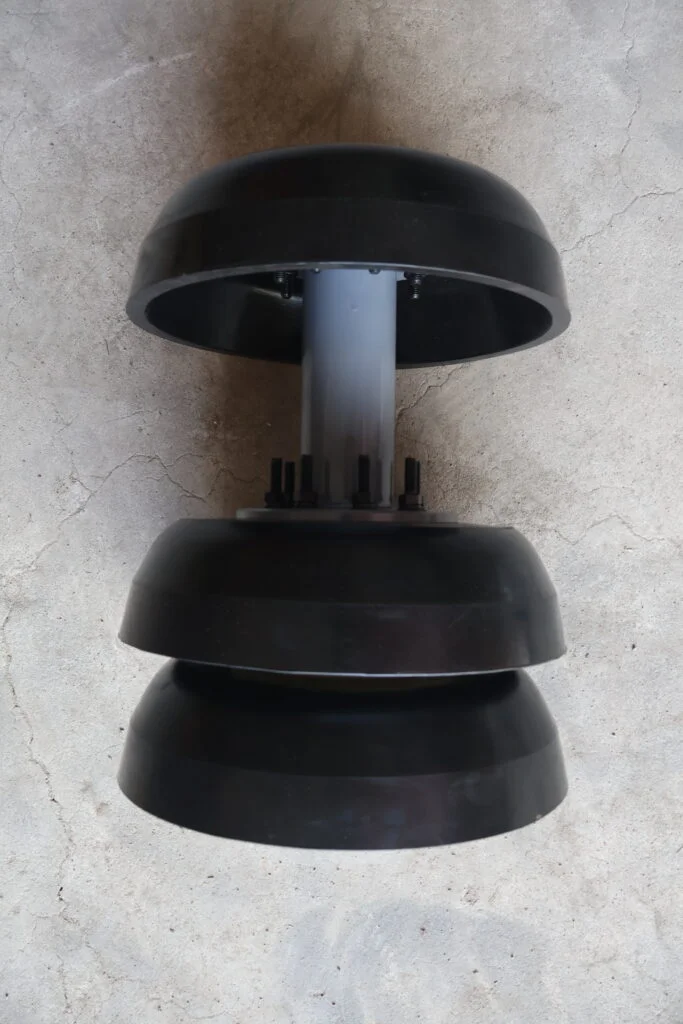

Uni-directional Scraper Pig

Benefits and Advantages of the Uni-directional Scraper Pig

The Uni-directional Scraper Pig offers numerous benefits and advantages over other methods of pipeline cleaning, making it a preferred choice for many industries.

1. Cost Efficiency: Its robust design and high-quality materials increase the lifespan of the pig, reducing the frequency of replacements and lowering maintenance costs. Additionally, it can perform repeated cleanings with sustained efficiency, reducing operation costs over time.

2. Time Efficiency: The Uni-directional Scraper Pig is designed for speed and effectiveness. Its unique ability to create a pressure difference and propel itself along the pipeline makes the cleaning process faster than many traditional methods.

3. Versatility: It can adapt to a variety of pipeline diameters and lengths due to its flexible design and material choices for the skeleton and cups. This adaptability makes it suitable for a wide range of applications.

4. Environmental Benefits: The use of the Uni-directional Scraper Pig minimizes the need for chemical cleaning agents, making it a more environmentally friendly option. Furthermore, by maintaining clean pipelines, it ensures optimal efficiency and reduces energy consumption.

5. Improved Pipeline Integrity: Regular use of the Uni-directional Scraper Pig can lead to better pipeline health. By removing debris, rust, and other unwanted materials, it helps prevent corrosion and other damage, thereby extending the lifespan of the pipeline system.

6. Safety: The Uni-directional Scraper Pig enhances safety by providing thorough cleaning, reducing the risk of pipeline blockages that can lead to pressure build-ups and potential accidents.

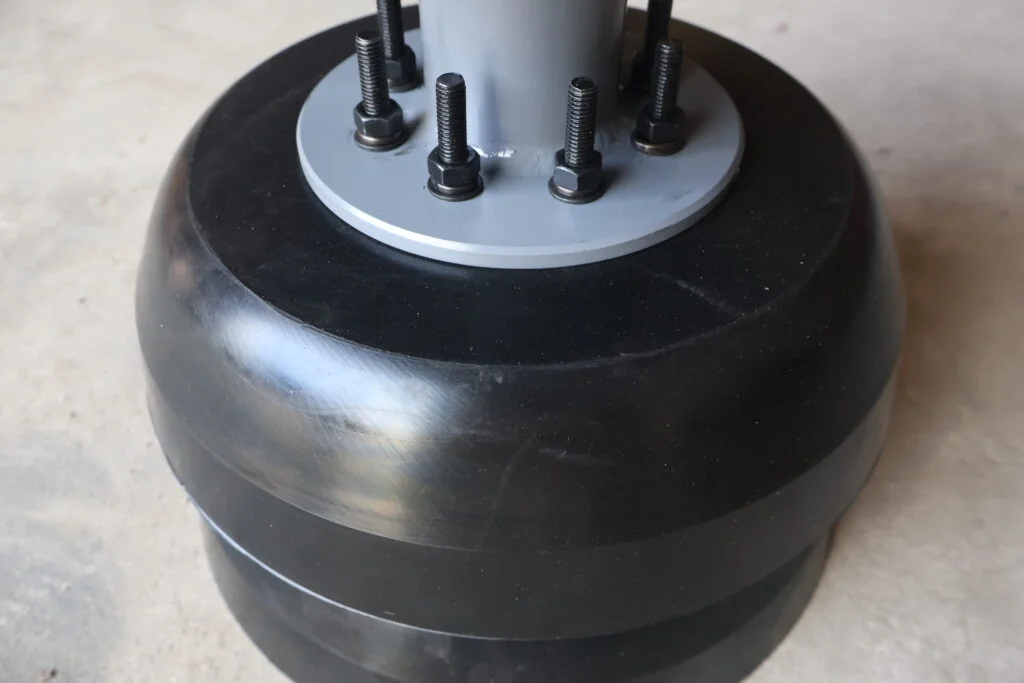

Uni-directional Scraper Pig

Conclusion

Conclusion In conclusion, the Uni-directional Scraper Pig is a standout solution for efficient and effective pipeline cleaning, offering remarkable benefits when compared to other traditional methods. Its robust design, high-quality materials, and versatile configuration options make it a cost-effective and long-lasting tool for diverse applications. Furthermore, its unique ability to create a pressure difference allows for swift and thorough pipeline cleaning, saving time and greatly enhancing operational efficiency. Moreover, the environmental impact of pipeline cleaning is significantly reduced with the Uni-directional Scraper Pig. It reduces dependency on chemical cleaning agents and helps maintain efficient pipeline systems, leading to lower energy consumption. Its regular use also contributes to better pipeline health, preventing corrosion and extending the lifespan of the pipeline system. All these factors, coupled with enhanced safety, make the Uni-directional Scraper Pig a reliable solution for pipeline cleaning. In an era where efficiency, sustainability, and safety are of paramount importance, the Uni-directional Scraper Pig is undeniably a tool of choice for the industry. It is a testament to how innovative design and high-quality materials can revolutionize traditional processes, providing tangible benefits and setting new standards in pipeline maintenance. As we continue to advance, tools like the Uni-directional Scraper Pig will be instrumental in shaping a more efficient and sustainable future.
