A solid cast pig is an innovative, versatile, and efficient solution for pipeline cleaning and maintenance. These pigs are designed to combine the advantages of foam pigs, which offer flexibility and easy handling, and steel pigs, known for their ruggedness and excellent sealing capabilities.

Description

Introduction

Solid cast pigs are innovative, versatile, and efficient solutions for pipeline cleaning and maintenance. These pigs are designed to combine the advantages of foam pigs, which offer flexibility and easy handling, and steel pigs, known for their ruggedness and excellent sealing capabilities. Ideal for batching, displacement, and routine pigging operations, solid cast pigs can also be used for cleaning applications with the addition of brushes. In this article, we will explore the various types of this kind pigs, their functions, and the benefits of using them in your pipeline systems. The default hardness of EMT solid cast pigs is 85A±5, but they can also be customized to 75A±5 or 65A±5 configurations. These pigs are designed for use in a variety of oil and gas industry applications, including oil pipelines, gas pipelines, water injection wells, and production wells.

Solid Cast Pigs

Types and Functions of Solid Cast Pigs

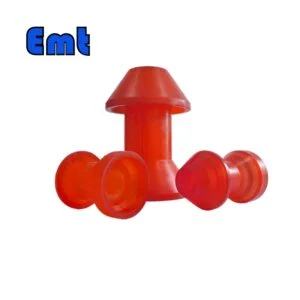

Cup-Type Solid Cast Pigs: These pigs are intended for cleaning pipes ranging in diameter from 4 to 56 inches. They are made of polyurethane elastomer, which provides high flexibility, lengthy thrust in rear-end operation, and a low chance of irreversible shutdown. To check for pipe abnormalities or damage, adjustable measurement plates made of aluminum or carbon steel can be placed.

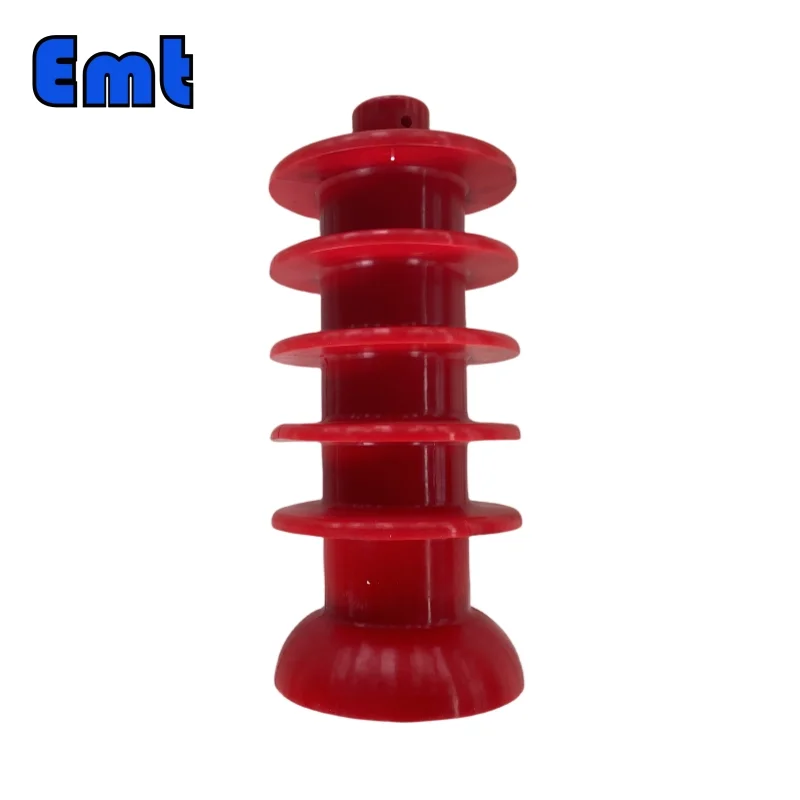

Disc-Type Solid Cast Pigs: These pigs are flexible and can accommodate a mandrel within for further stability. These pigs are lightweight and come in sizes ranging from 2 to 48 inches. They’re great for cleaning pipes, isolating liquids, and easily navigating 1D elbows.

Combination Cup-and-Disc Type Solid Cast Pigs: These pigs combine the benefits of cup-and-disc-type pigs, providing exceptional sealing qualities as well as the capacity to remove gas or liquid from pipelines. They are appropriate for batching, hydrostatic testing, and the removal of paraffin, dirt, or other deposits.

The Anatomy of Solid Cast Pigs

Materials Used in Solid Cast Pigs

Solid Cast Pigs are primarily made from specially formulated elastomers, most notably polyurethane. Polyurethane is chosen due to its superior physical properties, including durability, resistance to oil and other corrosive substances, and ability to withstand different temperature ranges. This material provides this pig with the resilience required to navigate the interior of various pipeline types and withstand the forces encountered during pigging operations.

Design and Construction of Solid Cast Pigs

The construction of this pig is a meticulous process, often tailored to meet specific customer needs. They are typically designed with a one-piece structure to ensure robustness and longevity. The pig’s body includes sealing elements called cups or discs, which provide a tight seal against the pipeline wall, ensuring effective cleaning or product separation.

Different Sizes and Shapes of Solid Cast Pigs

Solid Cast Pigs are available in a wide range of sizes and shapes to accommodate various pipeline diameters and configurations. The size of a Solid Cast Pig is carefully selected based on the internal diameter of the pipeline to ensure a proper fit and maximize operational efficiency.

The Role of Solid Cast Pigs in Pipeline Maintenance

Cleaning Pipelines: The Primary Function of Solid Cast Pigs

One of the primary roles of Solid Cast Pigs in pipeline maintenance is cleaning. Over time, pipelines can accumulate various forms of debris and deposits, such as rust, scale, wax, sand, and other materials. These accumulations can not only reduce the efficiency of product flow but may also cause severe damage to the pipeline.

Solid Cast Pigs are designed to travel through the pipeline, driven by the product flow or a separate driving fluid. As they move, their durable elastomer bodies create a tight seal against the pipeline wall, effectively scraping and pushing the unwanted debris ahead of them. They can even be fitted with additional cleaning features, like brushes or blades, to tackle more stubborn deposits.

Inspection and Maintenance: How Solid Cast Pigs Contribute

Solid Cast Pigs also play a crucial role in pipeline inspection and maintenance. Some pigs are equipped with electronic devices that can record data about the pipeline’s internal conditions as they travel. This data can provide valuable insights into the pipeline’s overall health, revealing potential issues such as wall thinning, cracks, leaks, or other anomalies that could lead to pipeline failure if not addressed promptly.

By identifying these issues early, necessary maintenance can be scheduled proactively, reducing the risk of unexpected failures and costly downtime. This preventative approach to pipeline maintenance is more efficient and cost-effective compared to reactive maintenance strategies.

Ensuring Pipeline Efficiency: The Impact of Solid Cast Pigs

The use of Solid Cast Pigs greatly contributes to maintaining pipeline efficiency. By regularly removing debris and deposits, these pigs ensure that the pipeline’s internal diameter remains unobstructed, allowing for optimal product flow. This not only improves the pipeline’s operational efficiency but also reduces the energy required to pump products through the pipeline, leading to significant energy cost savings.

Solid Cast Pigs

The Process of Pigging: An In-depth Look

Preparation for Pigging

The pigging process begins with careful preparation. This involves:

Understanding the pipeline conditions: It’s essential to have detailed knowledge of the pipeline’s diameter, length, layout (including bends and restrictions), and the type of substance flowing through it. This information will help in selecting the appropriate type and size of the Solid Cast Pig.

Choosing the right pig: Based on the pipeline conditions, the correct Solid Cast Pig is chosen. The pig should have the right physical properties (size, shape, material) to effectively clean, inspect, or separate products within the pipeline.

Preparing the pipeline: The pigging operation may require adjustments to the pipeline’s operating conditions, such as flow rate or pressure. In some cases, the pipeline may need to be isolated and depressurized.

The Launch and Recovery of Solid Cast Pigs

Once the preparation is complete, the Solid Cast Pig is launched into the pipeline. This is done through a specially designed piece of equipment known as a ‘pig launcher’. The pig launcher is a section of the pipeline that can be isolated and pressurized to push the pig into the pipeline.

The flow of the product (or a separate driving fluid) in the pipeline propels the Solid Cast Pig along the pipeline. As it travels, it performs its task, whether that’s cleaning the pipeline, inspecting the pipeline’s condition, or separating different products within the pipeline.

At the end of its journey, this pig is removed from the pipeline at a ‘pig receiver’, which is similar in design to the pig launcher but works in reverse. The pig receiver allows the pipeline to be safely depressurized and the pig to be removed.

Assessing the Results of Pigging

After the pigging operation is complete, the results are assessed. For cleaning operations, this might involve inspecting the Solid Cast Pig for debris or deposits and checking the pipeline flow rates to ensure they have improved. For inspection operations, any data collected by the Solid Cast Pig would be downloaded and analyzed to assess the pipeline’s condition.

Solid Cast Pigs

Frequently Asked Questions

  1. What is the lifespan of a Solid Cast Pig?

    The lifespan of a Solid Cast Pig largely depends on the conditions of the pipeline and the type of operation it performs. Factors that affect its lifespan include the length and diameter of the pipeline, the type of product flowing in the pipeline, the frequency of pigging operations, and the level of debris or deposits in the pipeline. Generally, a Solid Cast Pig can last for several runs, but it should be inspected after each operation to ensure it is still in good working condition.

  2. How often should pipeline pigging be performed?

    The frequency of pipeline pigging varies based on the type of product transported, the condition of the pipeline, and the specific requirements of the pipeline operation. Some pipelines may require pigging after every batch of product, while others may be pigged on a scheduled basis, such as weekly, monthly, or annually. It’s crucial to establish a pigging schedule that effectively maintains the pipeline’s cleanliness and efficiency without causing unnecessary wear to the pipeline or the pig.

  3. Is the use of Solid Cast Pigs environmentally friendly?

    Yes, the use of Solid Cast Pigs can contribute to environmental sustainability. By maintaining the cleanliness and efficiency of pipelines, Solid Cast Pigs help to reduce energy consumption, as a clean pipeline requires less energy to pump product. Additionally, regular pigging can prevent pipeline leaks or bursts, which can lead to environmental contamination.

Conclusion

In conclusion, Solid Cast Pigs play an indispensable role in the maintenance and operation of pipelines in the oil and gas industry. Their versatile design, tailored to meet various pipeline conditions, allows them to effectively clean, inspect, and separate products within the pipeline, ensuring optimal pipeline efficiency and safety. Moreover, by providing early detection of potential issues, this kind of pig enables proactive maintenance, reducing the risk of unexpected failures and costly downtime.

Additionally, this kind of pig contributes to environmental sustainability by reducing energy consumption and preventing potential environmental contamination that could arise from pipeline leaks or bursts. Therefore, they are not only a strategic choice for pipeline operators in terms of operational efficiency and safety but also a responsible choice from an environmental standpoint. The use of Solid Cast Pigs is a testament to the oil and gas industry’s commitment to incorporating innovative technologies that enhance operational effectiveness while reducing environmental impact.
