In the world of pipeline maintenance and corrosion monitoring, a corrosion retrieval tool is an indispensable piece of equipment. Whether you’re dealing with pipelines for oil, gas, or other industrial fluids, keeping track of the corrosion situation is crucial for maintaining the integrity and safety of the pipeline system. This article aims to provide a comprehensive overview of the corrosion retrieval tool, its importance in the industry, and how it contributes to the efficient maintenance of pipelines.

A importância do monitoramento da corrosão

Corrosion is a natural process that occurs when a metal reacts with its environment, leading to material degradation. In the case of pipelines, this can lead to leaks, ruptures, or even complete failure of the system. Consequently, monitoring and controlling corrosion is a vital aspect of pipeline maintenance, ensuring the safety and longevity of these critical infrastructure components.

One common method of corrosion monitoring is the use of corrosion coupons. These small, carefully crafted pieces of metal are inserted into the pipeline and exposed to the same conditions as the pipe itself. The corrosion that occurs on these coupons can then be analyzed and used to assess the overall corrosion situation within the pipeline system.

However, the process of retrieving and replacing these corrosion coupons has traditionally been a time-consuming and costly endeavor, often requiring the pipeline to be depressurized and shut down. This is where the corrosion retrieval tool comes into play, offering a more efficient and cost-effective solution for pipeline operators.

The Introduction of Corrosion Retrieval Tool

The corrosion retrieval tool is a specialized device designed to remove and install corrosion coupons in a pipeline system without the need for depressurization or shutdown. This innovative tool not only saves time and money but also reduces the risk of environmental and safety hazards associated with pipeline shutdowns.

Built with stainless steel components for resistance to corrosion and chemical exposure, the corrosion retrieval tool operates through mechanical contact, providing sensitive and reliable action. The tool is designed to work within a wide range of pressures and temperatures and can be used with various types of fluids, making it a versatile solution for diverse pipeline systems.

Key Features of a Corrosion Retrieval Tool

Pressure range: The corrosion retrieval tool is designed to work with pressures up to 45 MPa, accommodating most industrial pipeline systems.

Temperature range: With an operating temperature range of -20°C to 100°C, the tool is suitable for various environments and fluid types.

Compatibilidade: The tool can be used with petroleum products, natural gas, and other non-corrosive fluids.

Installation height: Depending on the pipe diameter, the installation height of the equipment usually does not exceed 1.5 meters, ensuring ease of use and accessibility.

The Retrieval Process

The corrosion retrieval tool simplifies the process of retrieving and replacing corrosion coupons, making it a more efficient and cost-effective solution for pipeline operators. The general retrieval process can be summarized in the following steps:

Preparation: Remove the protective cover and pipe plug from the base, install the adapter, and connect the various components of the retrieval tool.

Retrieval of corrosion coupon: Using the tool’s lifting mechanism, disassemble the corrosion coupon and remove it from the pipeline.

Installation of the new corrosion coupon: Attach the new coupon to the lifting mechanism, insert it into the pipeline, and secure it in place.

Finalization: Close the various valves, remove the retrieval tool, and reinstall the pipe plug and protective cover.

Maintenance of the Corrosion Retrieval Tool

To ensure the longevity and optimal performance of the corrosion retrieval tool, it is essential to properly maintain and clean the equipment after each use. Wipe down all components and apply grease to any parts with O-rings to prevent corrosion damage.

Key Parameters and Features

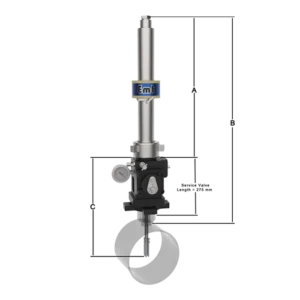

The EMT Corrosion Retrieval Tool is a high-quality, reliable, and efficient device designed for the removal and installation of corrosion coupons in various pipeline systems. This innovative tool offers pipeline operators a more convenient and cost-effective solution for corrosion monitoring and maintenance. In this section, we will outline the key parameters and features of the EMT Corrosion Retrieval Tool.

Pressure range: The EMT Corrosion Retrieval Tool is designed to work with pressures up to 45 MPa (6,525 psi), making it suitable for a wide range of pipeline systems.

Temperature range: The tool is capable of operating in temperatures ranging from -20°C to 100°C (-4°F to 212°F), ensuring compatibility with various environments and fluid types.

Compatibilidade: The EMT Corrosion Retrieval Tool can be used with various types of fluids, including petroleum products, natural gas, and other non-corrosive fluids.

Pipe diameter compatibility: The tool is suitable for use with pipe diameters ranging from 2 inches to 48 inches, accommodating a broad spectrum of pipeline sizes.

Installation height: With an installation height that typically does not exceed 1.5 meters (4.9 feet), the EMT Corrosion Retrieval Tool is easy to use and access.

Notable Features

Durable construction: The EMT Corrosion Retrieval Tool is built with high-quality stainless steel components, ensuring resistance to corrosion and chemical exposure for long-lasting performance.

User-friendly design: The tool features an ergonomic design, with simple and intuitive controls that enable easy operation, even in challenging field conditions.

Safety features: Equipped with safety valves and a reliable seal system, the EMT Corrosion Retrieval Tool minimizes the risk of leaks or accidents during the retrieval and installation process.

Versatilidade: The tool’s modular design allows for easy adaptation to different pipeline configurations and corrosion coupon types, making it a versatile solution for diverse applications.

Low maintenance: The EMT Corrosion Retrieval Tool requires minimal maintenance, ensuring a low cost of ownership and hassle-free operation.

Conclusão

The EMT Corrosion Retrieval Tool is a state-of-the-art device that streamlines the process of corrosion coupon retrieval and installation in pipeline systems. With its durable construction, user-friendly design, and versatile capabilities, this tool offers significant advantages to pipeline operators in terms of efficiency, cost savings, and safety. The EMT Corrosion Retrieval Tool is an essential addition to any pipeline maintenance program, helping to ensure the integrity, reliability, and longevity of critical infrastructure assets.

The corrosion retrieval tool is a game-changing innovation in the field of pipeline maintenance and corrosion monitoring. By allowing for the efficient retrieval and replacement of corrosion coupons without the need for pipeline shutdown or depressurization, this tool drastically reduces the costs and risks associated with traditional methods. As the industry continues to evolve, the corrosion retrieval tool will undoubtedly play a crucial role in maintaining the safety and integrity of pipeline systems around the world.
