Description

Introduction:

Quick opening closure serves as a crucial component in the upkeep and operation of various equipment, including filters, biphasic separators, scrubbers, pig launchers and receivers, and boilers.

Production Features:

1. Efficient Operation: The Locking-ring Quick Opening Closure utilizes an integral scalable locking ring structure, which shortens the opening and closing times compared to other types of quick opening closures.
2. Reliable Sealing: The unique self-tightening lip seal structure enhances the safety and reliability of the sealing process.
3. Safety Lock System: This closure is equipped with a self-locking safety system.
   • Prior to pressurization (“boosting”), the fast-opening blind and the locking structure on the designated operating parts must be in a locked position. If they are not properly locked, the equipment cannot be pressurized.
   • After depressurization (“unloading”), and before opening the blind flange cover, the internal pressure of the container must be fully released. This mechanism ensures secondary pressure relief and prevents safety issues arising from incorrect operation.

Product Details:

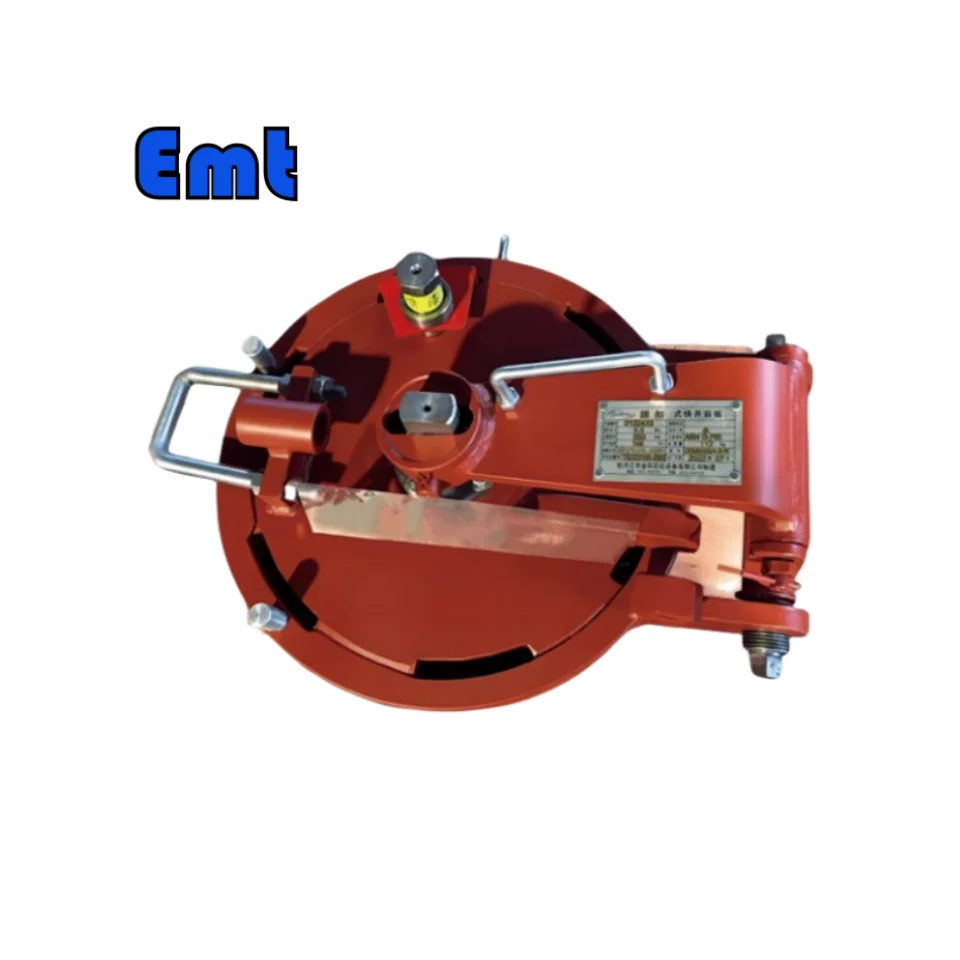

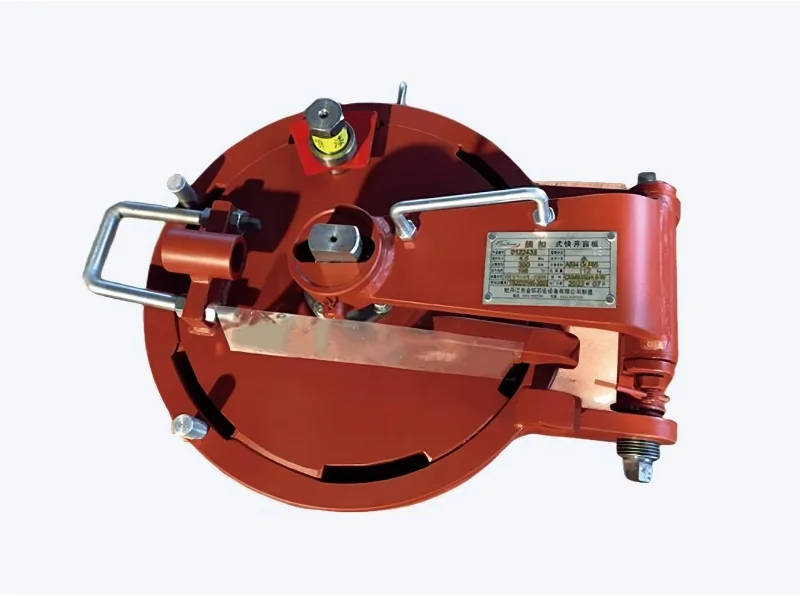

1. Product Name: Horizontal Type Quick Opening Closure
2. Brand Name: EMT Pigging
3. Condition: New
4. Type: Quick Opening Closure, Horizontal Lock
5. Weight: 60 KG
6. Material: Customizable
7. Size: Customizable
8. Certification: ISO 9001
9. Warranty: 1.5 Years
10. Applicable Industries:
Building Material Shops
Construction Works
Energy & Mining
Pipeline Pigging
Oil & Gas Pipeline
11. Place of Origin: Liaoning, China
12. Port: Dalian, China
13. Features: Long life and low cost
14. Inspections and Testing:
Video Outgoing-Inspection: Provided
Machinery Test Report: Provided
15. Minimum Order Quantity (MOQ): 1 Set
16. Showroom Location: None (Online)
17. Application: This product is primarily used for industrial pipeline cleaning

Advantages of Quick Opening Closures

Clamp Ring Type Quick Opening Closure for Pipeline Pig Launcher Receiver

Design Pressure: Ranges from 1.6MPa to 30MPa

Corrosion Allowance: Accommodates up to 2mm

Seismic Fortification Intensity: Resistant up to 7 degrees

Working Medium: Suitable for oil, natural gas, water, and ore pulp, among others

Opening Time: Can be opened within 60 seconds using less than 200N of force

Opening Type: Available in vertical or horizontal orientations

Why Choose Us

If you have any requests for quick opening closure, just contact us, and we can design products as you require!
