Introduction

In various industries such as oil and gas, transportation, and infrastructure maintenance, efficient pig tracking equipment is essential for monitoring and managing pipelines. LCQZ introduces a range of cutting-edge smart tracking equipment designed to enhance pig tracking operations. These devices offer advanced features and exceptional sensitivity, allowing for reliable signal reception, accurate positioning, and obstruction detection. In this article, we will explore LCQZ’s three innovative pig-tracking equipment models and delve into their benefits for optimizing pig-tracking operations.

LCQZ’s smart pig-tracking equipment revolutionizes the efficiency and precision of pig-tracking operations in various industries. Whether it’s the LCQZ-JS Smart Tracking and Positioning Receiver with its real-time signal strength display, the LCQZ-TG Smart Passed Alarm Indicator capable of obstruction detection, or the LCQZ-BT High Sensitivity Receiving device for weak signal recognition, each instrument offers unique features to address the diverse needs of pig tracking applications. By leveraging these advanced tracking devices, industries can enhance operational efficiency, reduce downtime, and ensure the uninterrupted flow of pipeline systems. With LCQZ pig tracking equipment, optimizing pig tracking operations has never been easier or more effective.

Efficient pig tracking equipment is paramount in industries reliant on pipelines for their operations. LCQZ’s range of smart tracking equipment, purpose-built for pig tracking, delivers exceptional performance and reliability. These cutting-edge devices provide comprehensive solutions for signal reception, accurate positioning, and obstruction detection, streamlining pig tracking operations and minimizing downtime.

LCQZ-JS Smart Tracking and Positioning Receiver:

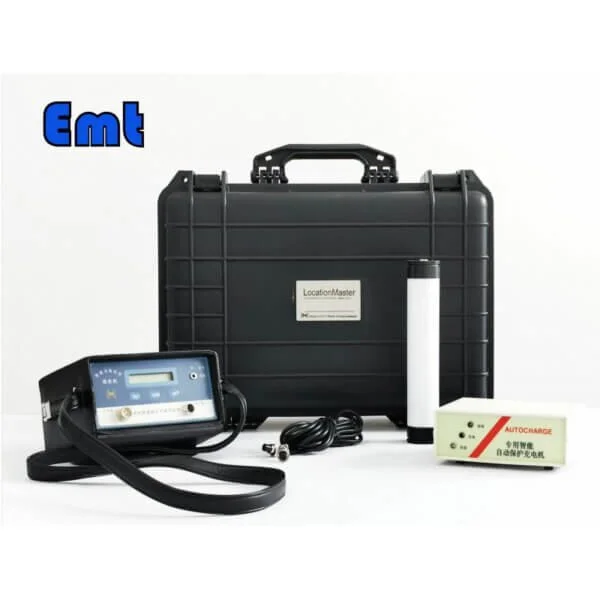

The LCQZ-JS is a portable device consisting of a main unit and a probe. Specifically designed to detect ultra-low frequency electronic signals emitted by smart electronic scrapers, this receiver is a valuable tool in pig tracking. Equipped with an LCD display, it provides real-time feedback on signal strength, aiding in the tracking process. By analyzing audio signals outputted through the earphones, it can distinguish between electronic scraper signals and external interference. Simultaneous visual and audio indicators provide clear hints for accurate pig tracking and positioning.

Key Features:

– Detects ultra-low frequency electronic signals for pig tracking.
– Real-time signal strength visualization through an LCD display.
– Audio signal output for differentiation between scraper signals and interference.
– Simultaneous light indicator and earphone feedback for precise tracking.

LCQZ-TG Smart Passed Alarm Indicator:

The LCQZ-TG is another portable device comprising a main unit and two probes. Its primary function is to receive and recognize ultra-low frequency electronic signals produced by smart electronic scrapers. It also stores the time of signal reception, facilitating the verification of pig passage at specific locations. For long pipelines spanning over 10,000 meters, the LCQZ-TG can effectively monitor the position range of the electronic scraper. In case of any obstructions, it promptly detects the blocking location, enabling timely intervention and efficient troubleshooting.

Key Features:

– Receives and recognizes ultra-low frequency electronic signals in pig tracking.
– Stores time of signal reception for verification purposes.
– Monitors the position range of the electronic scraper in long pipelines.
– Detects and identifies blocking locations accurately for effective troubleshooting.

LCQZ-BT High Sensitivity Receiving:

The LCQZ-BT, when used in conjunction with LCQZ ground instruments, offers a solution for receiving and recognizing weak scraper signals. With its extended high-sensitivity receiving antenna made of magnetic material, this device ensures the reliable reception of weak signals. It addresses scenarios such as power launchers or buried pipelines exceeding specific depths (e.g., 3 meters for power launchers and 1.5 meters for DN80 pipelines), where ground reception of signals becomes challenging. The LCQZ-BT’s high sensitivity receiving capability significantly improves the efficiency and accuracy of pig tracking operations.

Key Features:

– High sensitivity receiving antenna for weak signal detection in pig tracking.
– Compatible with LCQZ ground instruments.
– Reliable signal reception for buried and deep pipelines.
– Enhances the overall efficiency and accuracy of pig tracking operations.

Conclusion:

The LCQZ-JS Smart Tracking and Positioning Receiver is an invaluable tool for pig tracking. Its ability to detect ultra-low frequency electronic signals emitted by smart electronic scrapers ensures precise tracking. The device features an LCD display that offers real-time feedback on signal strength, empowering operators to assess the quality and proximity of the signal. By utilizing audio signals outputted through the earphones, the LCQZ-JS can differentiate between electronic scraper signals and external interference. This feature allows operators to focus on the relevant signals, enhancing efficiency in tracking and positioning pigs within the pipeline network.

To address challenges associated with weak scraper signals, LCQZ introduces the LCQZ-BT High Sensitivity Receiving device. This device, when used in conjunction with LCQZ ground instruments, offers a reliable solution for detecting and recognizing weak signals. The high-sensitivity receiving antenna, constructed from a magnetic material, ensures optimal signal reception even in challenging scenarios. It effectively tackles situations where power launchers or buried pipelines exceeding certain depths pose reception difficulties. With the LCQZ-BT, operators can confidently track and monitor pig movements in pipelines, regardless of signal strength or burial depth, enhancing overall tracking accuracy and efficiency.

In conclusion, LCQZ’s smart pig-tracking equipment is a game-changer for pig-tracking operations in various industries. The LCQZ-JS Smart Pig Tracking and Positioning Receiver provide real-time signal strength feedback, enabling precise tracking and positioning of pigs within pipelines. The LCQZ-TG Smart Passed Alarm Indicator offers verification of pig passage and obstruction detection, ensuring seamless pipeline operations. Lastly, the LCQZ-BT High Sensitivity Receiving device enhances signal reception in challenging environments, enabling efficient tracking in buried or deep pipelines. By employing LCQZ’s state-of-the-art pig tracking equipment, industries can optimize their operations, reduce downtime, and maintain the integrity of their pipeline systems.
