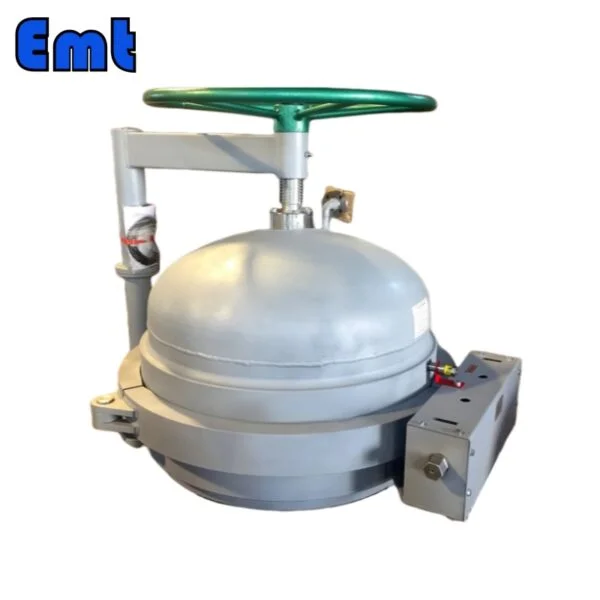

Introduction to Quick Open Closures (QOC)
Quick Open Closures (QOCs) are vital components in a variety of piping systems. Our company’s quick-opening blind plate is designed according to ASME Div. 1. Through ANSYS finite element stress analysis and structure, the main pressure components are all made of integral forging, using low-alloy high-strength carbon steel. The term ‘Quick Opening Closure’ refers to its design purpose, which is to be opened and closed rapidly and frequently. At EMT, we understand the crucial role of QOCs in oil and gas operations, from routine maintenance and internal inspections to the launching and reception of pipeline pigs. Our QOCs are designed to be user-friendly while upholding the highest safety standards. The importance of QOCs in a piping system cannot be overstated, as they enable efficient access, reduce downtime, and ensure the safety of the operating crew.
Schnellöffnende Verschlüsse verstehen
Quick Open Closures (QOCs) are specialized mechanical devices designed to provide secure, rapid access to the interior of pressure vessels and pipelines. These devices are integral to industries such as oil, gas, and petrochemicals, where frequent inspection and maintenance of pressure systems are required. The primary function of a QOC is to create a reliable seal on the opening of a pipeline or pressure vessel, allowing it to withstand high internal pressures. Upon necessity, the closure can be quickly and safely opened, granting access for inspection, maintenance, or cleaning operations. The rapid opening and closing mechanisms of these devices help reduce downtime, thus enhancing overall operational efficiency.
Quick Open Closures are typically composed of several key components that work together to perform their function. The main components include a body flange, a head cover, a hook ring or clamp, a sealing ring, a safety interlock mechanism, an opening and closing mechanism, a swing arm, and occasionally a short section. The body flange and the head cover form the main body of the closure, providing the interface for the seal. The sealing ring ensures a tight, leak-proof closure, able to withstand the pressure inside the vessel or pipeline. The hook ring or clamp is used to secure the head cover to the body flange, while the safety interlock mechanism prevents accidental opening under pressure. The opening and closing mechanism facilitates easy operation of the closure, and the swing arm (present in some designs) provides leverage during opening or closing.
The operation of a Quick Open Closure involves a simple opening and closing process. To open the closure, the operator first ensures that the pressure inside the vessel or pipeline is relieved. Then, the safety interlock mechanism is disengaged, allowing the operator to use the opening mechanism (and the swing arm, if present) to unfasten the head cover from the body flange. This reveals the interior of the pipeline or vessel for inspection, maintenance, or cleaning. Once the necessary operations are completed, the closure is re-sealed by positioning the head cover back onto the body flange, engaging the hook ring or clamp, and securing the safety interlock mechanism. Throughout this process, the sealing ring ensures a tight seal, allowing the vessel or pipeline to be safely pressurized again.
Produktparameter
- Nennweite DN: ≤1800mm; custom sizes available on request
- Designed and Produced in accordance with ASME Division VIII, ASME B31.3, ASME B31.4, and ASME B31.8
- Orientation: Horizontal, Vertical, or Inclined
- Pressure Class: 150#, 300#, 600#, 900#, 1500#
- working medium: oil, gas, water
- design temperature: -50℃~300℃
- pipe thickness: 6mm~100mm
The information above is an example of product indicators; other specifications for Quick Open Closures are implemented in accordance with industry standards.
MATERIALS
- Pressure Alert Valve: A-316 Stainless Steel
- Locking Segments: SA-182, F6A, CL2
- O-Ring: BUNA-N, Viton, Customer Specified
The information above is an example of product indicators; other specifications for Quick Open Closures are implemented in accordance with industry standards.
Applications of Quick Open Closures
Quick closures are integral components in various industries, including oil and gas, petrochemicals, pharmaceuticals, and water treatment. They offer secure, rapid access for inspection, maintenance, and cleaning operations within pressure vessels and pipeline systems. Let’s explore the specific applications in each industry.
Oil and Gas Industry
In the oil and gas industry, quick closures are vital for facilitating pipeline pigging operations, where they are installed in pig launchers and receivers. Pipelines need regular cleaning and inspection to ensure their operational efficiency, and this process involves sending a device known as a ‘pig’ through the pipeline. Quick closures provide a secure seal on the launcher or receiver while also allowing for quick and easy access when the pig needs to be inserted or removed.
Moreover, quick closures are essential in pressure vessels used for separating different components of oil and gas. They can withstand the high pressures and temperatures typically experienced in these operations, providing a reliable seal while also allowing for easy access when necessary.
Petrochemical Industry
In the petrochemical industry, quick closures are commonly used in reactors, separators, and other pressure vessels. They are designed to withstand the high pressures and temperatures that these vessels often operate under, while also providing easy access for regular inspection and maintenance.
For instance, quick closures facilitate the efficient operation of filter separators that remove solid particles and liquids from gases. By enabling swift access to the interior of these separators, they allow for timely maintenance and cleaning, thereby preventing operational disruptions.
Pharmaindustrie
The pharmaceutical industry uses quick closures in a variety of applications, including the production of medicinal drug substances and bioreactors. Quick closures offer secure and sterile access to these pressure vessels, ensuring the integrity of the pharmaceutical process.
In bioreactors, for example, quick closures enable the easy insertion and removal of media, biological samples, and sensors. They are designed to maintain a sterile environment inside the reactor, preventing contamination and ensuring the quality of the biological products.
Water Treatment Industry
Quick Open Closures are critical in the water treatment industry, particularly in pressure vessels used for filtration and disinfection processes. They provide a secure seal on these vessels, protecting the internal components from external contamination and enabling easy access for maintenance and replacement of filters.
Schlussfolgerung
Quick Open Closures (QOCs) play a vital role in a multitude of industrial applications, offering secure, rapid access to pressure vessels and pipelines. These mechanical devices, designed to withstand high-pressure environments, are key to many industries such as oil and gas, petrochemicals, pharmaceuticals, and water treatment. Their primary function is to ensure a reliable seal on the openings of pipelines or pressure vessels, allowing for smooth operations under various conditions.
EMT is dedicated to producing Quick Open Closures that align with the highest safety and efficiency standards. Our QOCs reflect a comprehensive understanding of the operational challenges and requirements of different industries. For example, our QOCs are made to make pipeline pigging easier in the oil and gas industry, filter separators work better in the petrochemical industry, and sterile environments are guaranteed in pharmaceutical bioreactors.
Our Quick Open Closures are versatile and capable of handling various working mediums such as oil, gas, and water. They operate reliably across a broad temperature range, from -50°C to 300°C, making them suitable for numerous operating conditions. This flexibility, coupled with our commitment to innovation and improvement, allows us to provide clients with QOCs that meet their diverse needs. Quick Open Closures are indispensable components in any piping system. They not only ensure operational efficiency by reducing downtime but also uphold safety standards, safeguarding personnel and equipment.
As we continue to advance in our design and manufacturing processes, EMT remains dedicated to delivering Quick Open Closures that exceed industry standards and client expectations.
