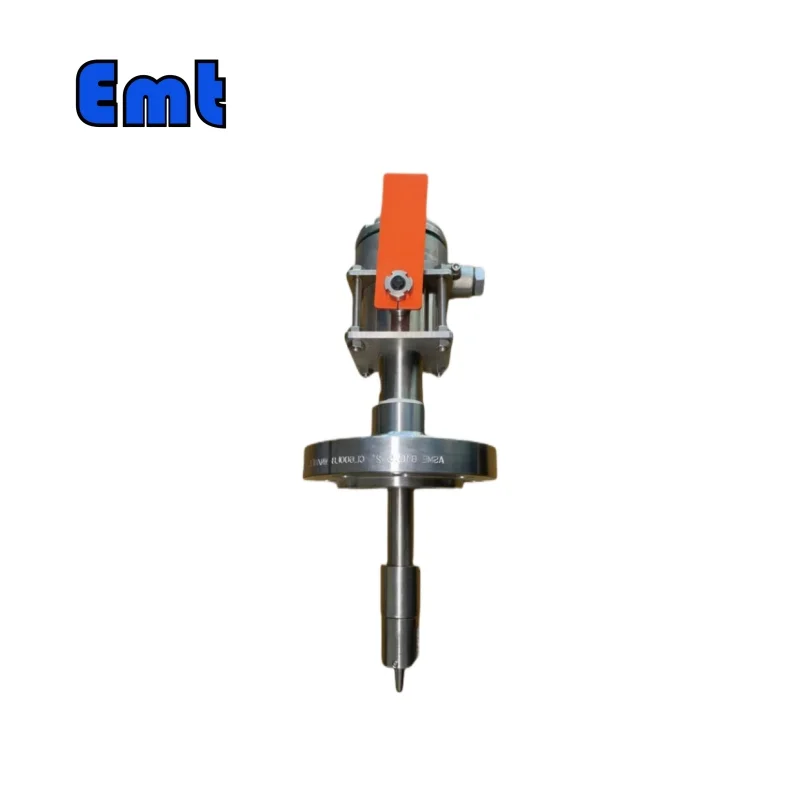

The pig signaller with flange connection is a crucial component in the oil and gas industry that ensures the smooth movement of pipeline pigs. As an innovative solution offered by EMT, the pig signaller optimizes the efficiency of pipeline operations while providing accurate confirmation of pig movement.

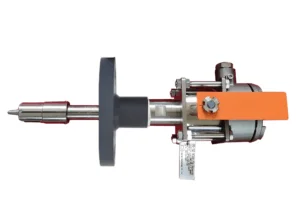

The pig indicator with flange connection is a mechanical contact explosion-proof indicator used in various technological processes, including pipeline descaling. This indicator is designed with a flange connection for easy installation and integration into the pipeline system.

One of the key advantages of this pig indicator is its simple structure, which ensures ease of use and maintenance. Its manufacturing cost is also relatively low, making it a cost-effective choice for pipeline operations. The indicator provides an intuitive and reliable indication of the passage of pig objects within the pipeline.

Parameters

The EMT pig signaller with flange connection offers various parameters to meet specific industry requirements. These parameters include:

– Flange Material: Stainless Steel 304, Stainless Steel 316, DSS F51, Carbon Steel A105N, Inconel 625.

– Flange Pressure: Class150#, Class300#, Class600#, Class900#, Class1500#, Class2500#.

– Operating Temperature: -20℃ to +120℃.

Functions and Use Effects

1. Confirmation of Pig Movement: The pig signaller provides real-time confirmation of pig passage through the pipeline, ensuring accurate tracking of pig location.
2. Pipeline Maintenance: By monitoring the movement of pigs, the signaller enables proactive maintenance by identifying potential issues such as blockages or damages.
3. Operational Efficiency: The signaller improves operational efficiency by minimizing downtime and optimizing the pigging process.
4. Safety Enhancement: With its reliable indication system, the pig signaller helps prevent accidents and ensures the safety of personnel and assets.

Features and Advantages

1. Robust Construction: Built with high-quality materials, such as stainless steel and carbon steel, the signaller ensures durability and long-term performance in challenging pipeline environments.
2. Versatile Flange Options: The availability of various flange materials and pressure ratings allows for flexible installation in different pipeline systems.
3. Accurate and Reliable Confirmation: The signaller provides a precise and reliable indication of pig passage, reducing the risk of errors and false readings.
4. Easy Installation: The flange connection design simplifies the installation process, ensuring quick integration into existing pipeline infrastructure.
5. Compatibility: The pig signaller is compatible with different pig types, including scrapers and spheres, without requiring additional magnet inserts in the pigs.

Arbeitsprinzip

The pig signaller with flange connection operates on a mechanical contact explosion-proof indicator system. When a pig passes through the trigger point, a striker mounted on the extension sleeve moves, transmitting the action to the instrument button. This triggers the display instrument, which records the passage of the pig and displays relevant parameters. The real-time time display and recording system ensure accurate tracking of pig movement and timing.

Wartung

To maintain the optimal performance of the pig signaller with a flange connection, it is essential to follow proper maintenance practices. While the part above the flange can be disassembled under pressure, it is recommended not to do so unless necessary. The O-ring for sealing below the flange is a consumable part and may require replacement over time.

FAQs

• Q: Can the pig signaller with a flange connection be used in explosive and flammable environments?
• A: Yes, the pig signaller is designed for use in explosive gas and flammable medium environments, meeting explosion-proof requirements (dⅡBT4/IP55).
• Q: What are the power requirements for the pig signaller?
• A: The pig signaller operates on four AA 1.5V alkaline batteries Continuation:
• Q: What is the working duration of the pig signaller?
• A: The pig signaller offers a working duration of at least 10 hours, ensuring reliable operation during pipeline operations.
• Q: How is the pig passage recorded and displayed?
• A: The pig signaller records and displays the passage of pigs through a two-row display system. The upper row indicates the number of pig passes and accumulated timing, while the lower row shows the current time. After a period of timing, the instrument automatically shuts down.
• Q: Can the pig signaller be remotely controlled or monitored?
• A: Yes, the pig signaller can be equipped with a remote transmission module for remote control or display. It provides ON/OFF switch value signals (DC 3-24V/2A electronic switch), allowing for convenient monitoring and control.

Schlussfolgerung

The pig signaller with flange connection offered by EMT is a reliable and efficient solution for optimizing pipeline operations. With its robust construction, accurate confirmation system, and versatile flange options, the pig signaller ensures smooth pig movement, enhances operational efficiency and improves safety. Its working principle, maintenance requirements, and compatibility with different pig types make it a valuable asset for the oil and gas industry. Trust EMT’s pig signaller to streamline your pipeline operations and ensure the integrity of your infrastructure.

Invest in the pig signaller with flange connection from EMT today and experience the benefits of enhanced pipeline efficiency, accurate pig tracking, and improved maintenance practices. Contact us now to learn more about our innovative solutions and take your pipeline operations to the next level.

The working principle of the pig indicator involves a striker with bidirectional triggering mounted on the end of the extension sleeve. This striker is positioned near the pipe wall through a connecting pipe, typically with a DN50 probe. When a pig passes through the pipeline, the movement of the striker is transmitted to the instrument button via a connecting rod within a sealed bushing. As a result, the instrument is triggered to work and display the necessary information.

The instrument includes a main body and a display instrument, connected by knurled nuts. It features indicator lights for Hit impact and test/reset functions. The upper row of the display shows the number of pig passes and accumulated timing value, while the lower row displays the current time. The instrument has a built-in real-time time display and recording system, allowing for parameter recording and easy monitoring of pig passage.

This pig indicator with a flange connection is suitable for use in explosive gas and flammable medium environments. It conforms to explosion-proof standards with a dⅡBT4/IP55 rating, ensuring safety and reliability in such settings. The indicator can be customized with different penetration lengths, catering to specific pipeline requirements.

Overall, the pig indicator with flange connection provides a practical and efficient solution for monitoring pig passage in pipelines, ensuring the smooth operation of pipeline processes while maintaining safety and accuracy in various industrial applications.
